Here's some parts that I've designed while building my '29 Chevy, if I make something that I think others might want I'll make extras and put them on this page for sale
Click below to go to the item
1. Blower idler bracket, Blower mounted; Chevy-Ford-Mopar- AMC
2. Dash Gauge insert, Billet aluminum, 1929 Chevy only
Links to the rest of my site (Click on the thumb you're interested in)

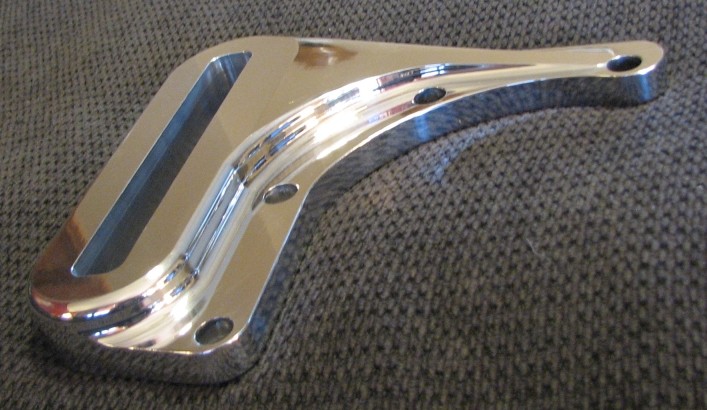

Universal Idler Bracket, CHEVY-FORD-MOPAR
This is my second design bracket, it has a more universal fitment for Chevy; Ford; and Mopar

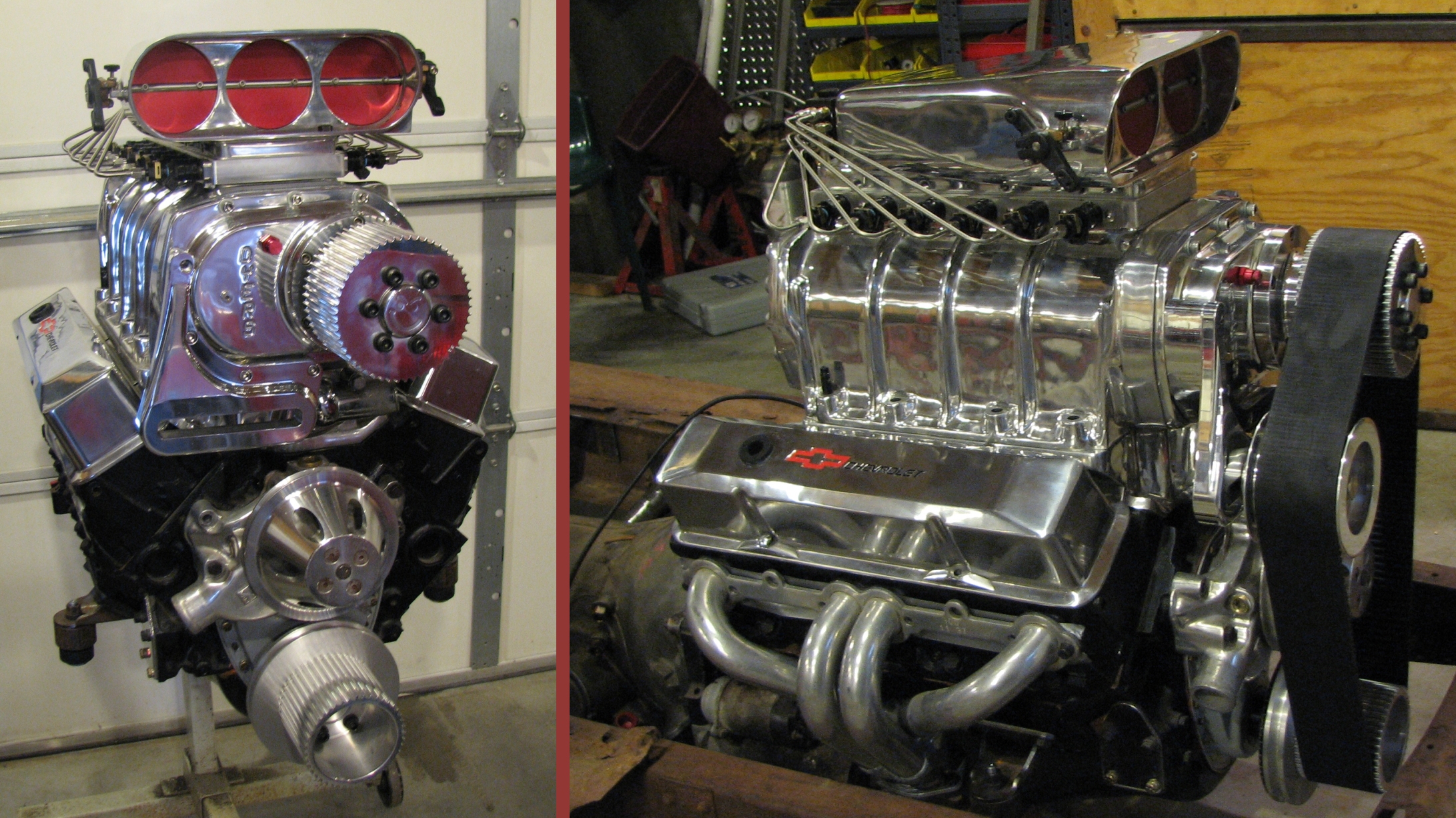

CNC 3D milled and show polished; mounts on supercharger. You’ve spent a lot of money on that blower, wouldn’t it be nice to have an idler bracket that complements the rest of your setup, especially ’cause it‘s right there up front?

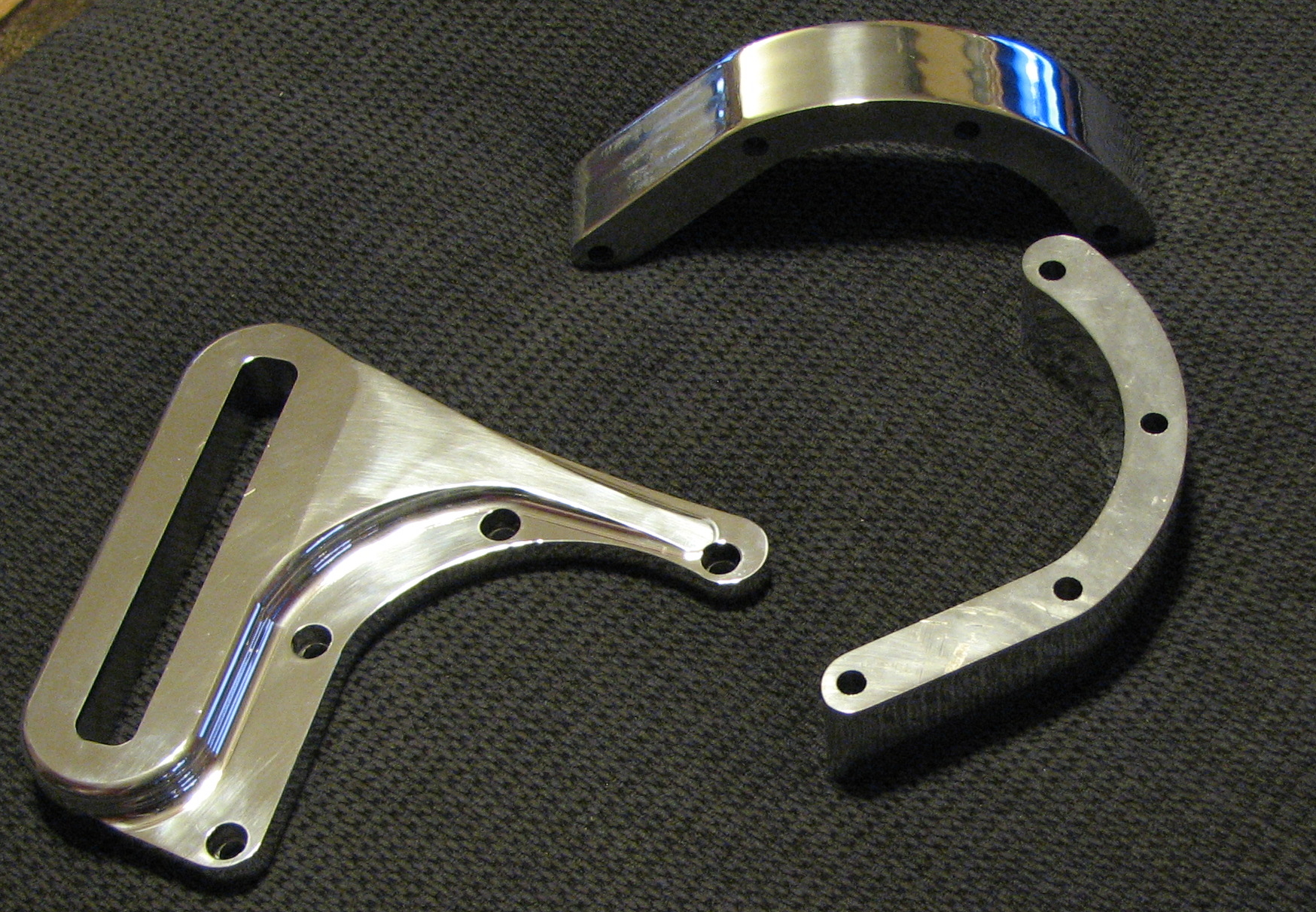

CNC profile milled out of 6061-T6511 Plate 1” thick, this bracket along with the CNC milled & polished solid standoff spacer will end any vibration issues you might have.
If you need a narrower spacer it can easily be milled down by your local machine shop, if you need a thicker spacer I can supply up to 1.500” thick spacers for $40.00 each, which can be milled and stacked to give the desired height.
Selling for $200; includes the idler bracket and ONE 1.500 wide idler bracket spacer.
Extra spacers can be purchased separately if needed.
Universal Idler Bracket, CHEVY-FORD-MOPAR

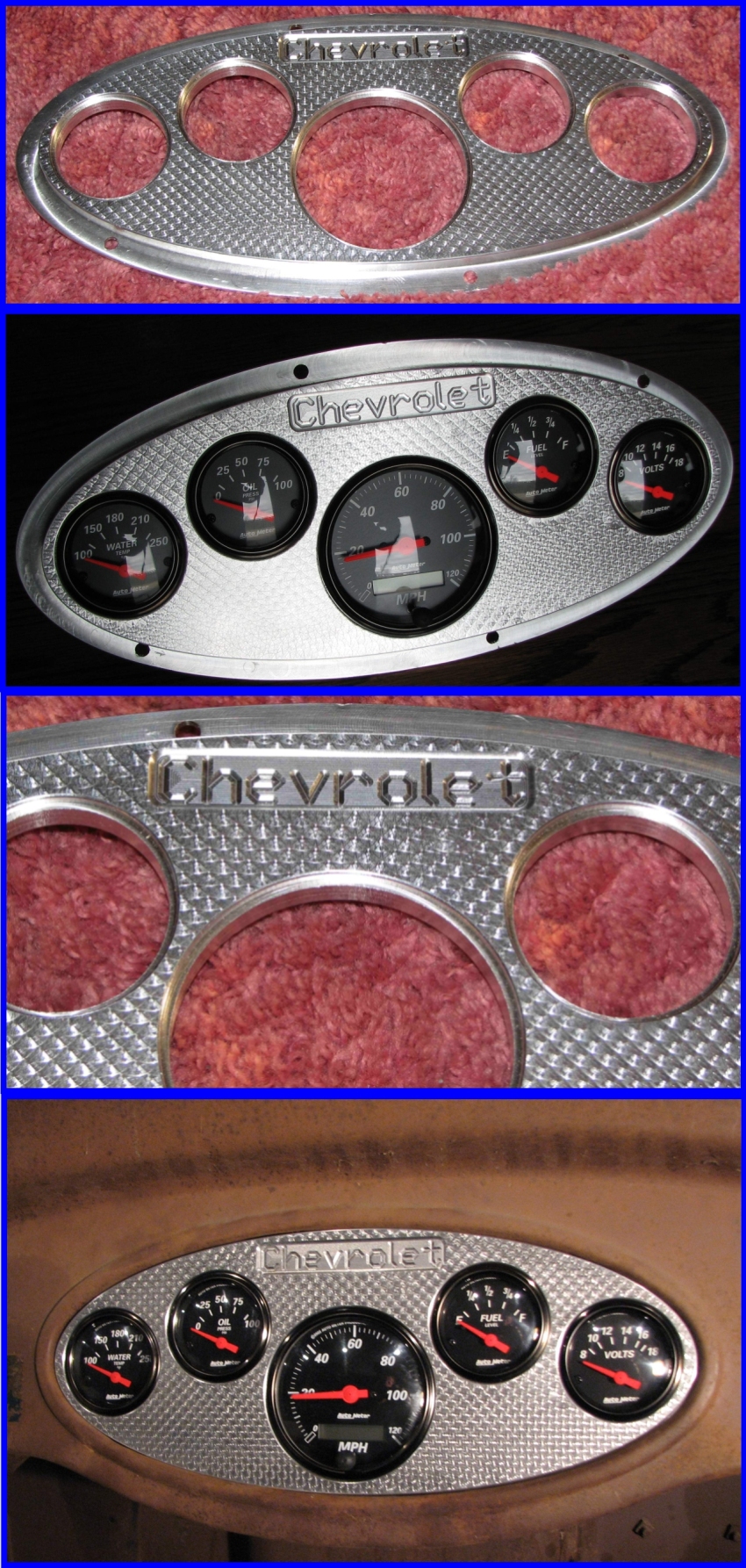

1929 Dash Gauge Insert
1929 Dash Gauge Insert
Billet Aluminum Dash insert for a 1929 Chevy Car/Truck. This insert bolts in place with no other modifications to your dash allowing you to put Auto Meter or equivalent 3-1/8” Speedometer or Tachometer and a set of 2-1/16” small gauges in it. The picture shown in the ’29 Chevy Truck dash has Auto Meter Street Rod Series Designer Black gauges in them. The face pattern on this panel is a design I happened across while experimenting on the CNC, and while it takes a lot more time to make, I have been told so far by everyone who has seen it that it is much more attractive than just a ball milled and polished panel. I made some extra gauge inserts when I made the one for my truck and when they're gone, they're gone.
(I've got 1 left as of 01/17/2010 , and when this is gone that's it. $200)
These will ONLY fit the 1929 Chevy dash with OVAL hole
 |
