Directions for assembly of my Blower plates

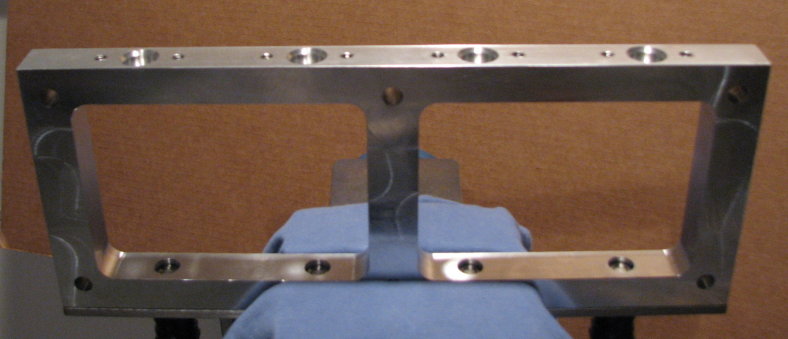

First you need to get a vice and something that won't mar the Aluminum, such as a rag or soft jaw

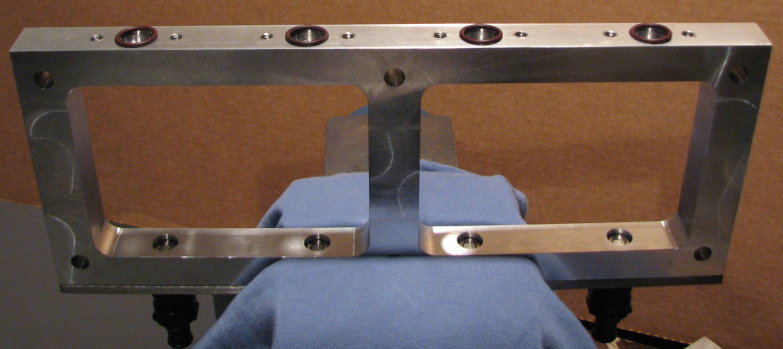

Then line the supplied Cat O-rings up in the counterbores as shown

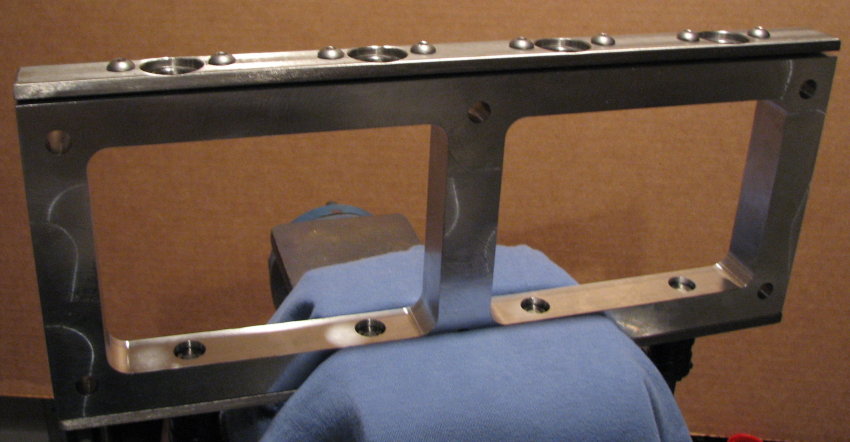

Put the Stainless steel side plates on with the counterbore to the top (this is the clearance for the injector body)

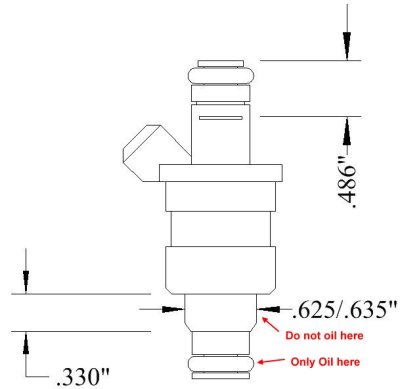

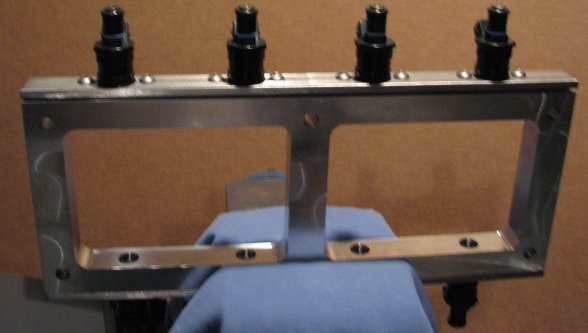

Next oil the injectors in the spot marked on the drawing below and push them into the bores

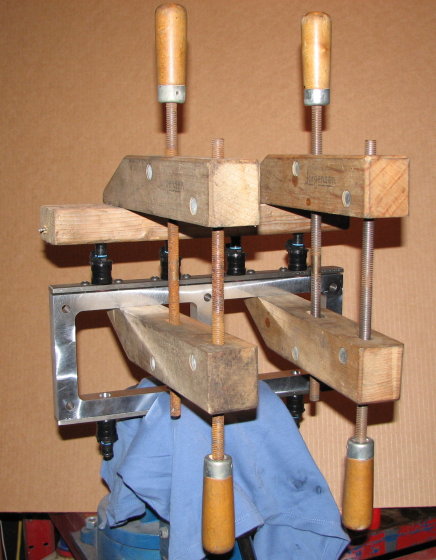

Lastly you need to figure out a way to hold the injectors in as you tighten the button-head bolts. Note that you don't need any excessive force, just some pressure to hold them in the bottom of the bores as you tighten the bolts.

Excessive force could damage the injectors, so be careful!!!
